Основные
Unnamed: 21	54 mm
Length of Carriage	100 mm
Total Width	100 mm
Thread	M5
Depth of Thread	13 mm
Effective length factor of bellow	1,5
Height of Carriage	36 mm
Mass of Carriage	0,9 kg
Maximum Speed	5 m/s
Maximum Acceleration	50 m/s2
Load direction I: compressive load	2.120 N
Load direction II: tensile load	2.120 N
Load direction III: lateral load	2.120 N
Max. permissible static moment per Carriage 1	45 Nm
Minimum operating Temperatur	0 °C
Maximum operating Temperatur	80 °C
Length of Bellows Fastener	20 mm

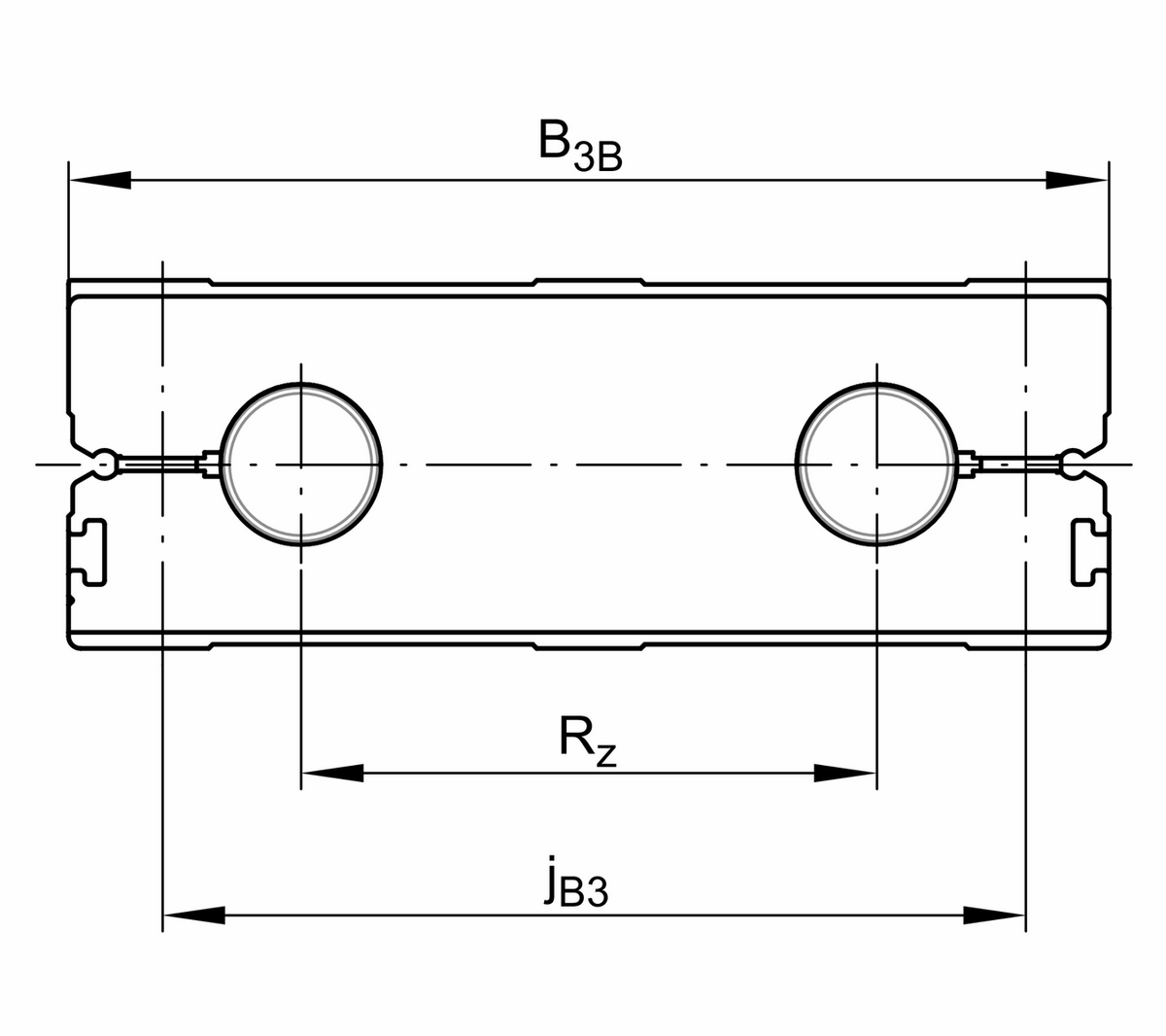

Width of Shaft Support Blocks	100 mm

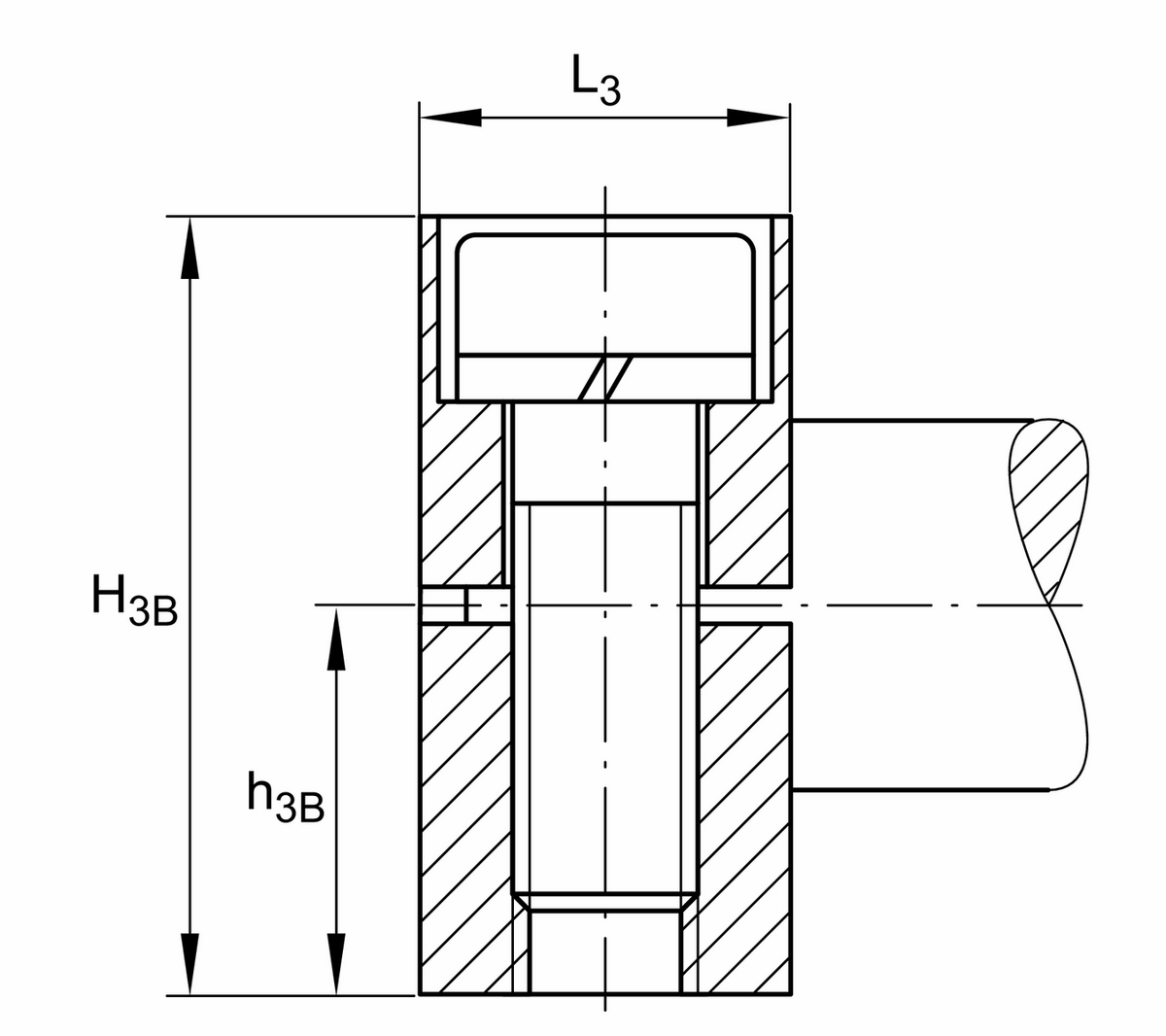

Height of Shaft Support Blocks	32 mm
Length of Shaft Support Blocks	18 mm
Ø Shaft, Tolerance h7	16 mm
