Основные
Unnamed: 21	122 mm

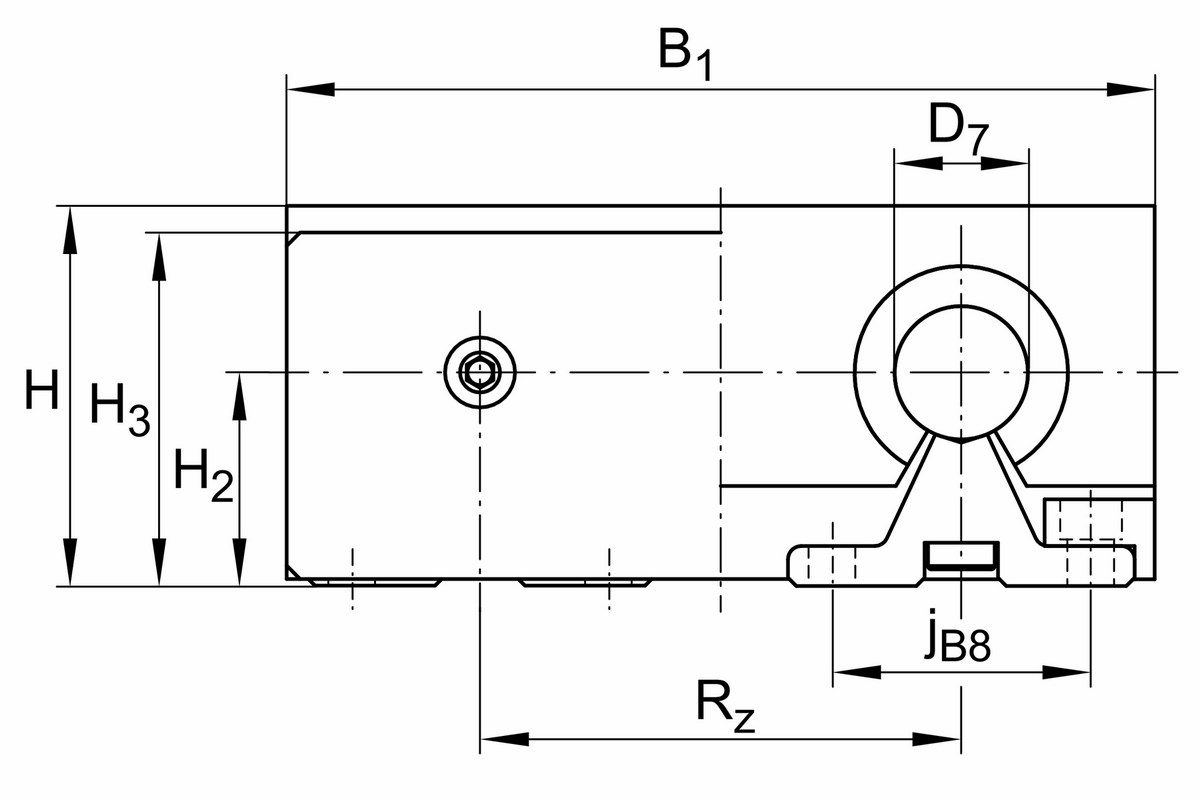

Total Height	95 mm
Total Width	230 mm
Tolerance h7	40 mm
Thread	M16
Depth of Thread	34 mm
Effective length factor of bellow	1,27 mm
Mass of Carriage	9,1 kg
Maximum Speed	5 m/s
Maximum Acceleration	20 m/s2

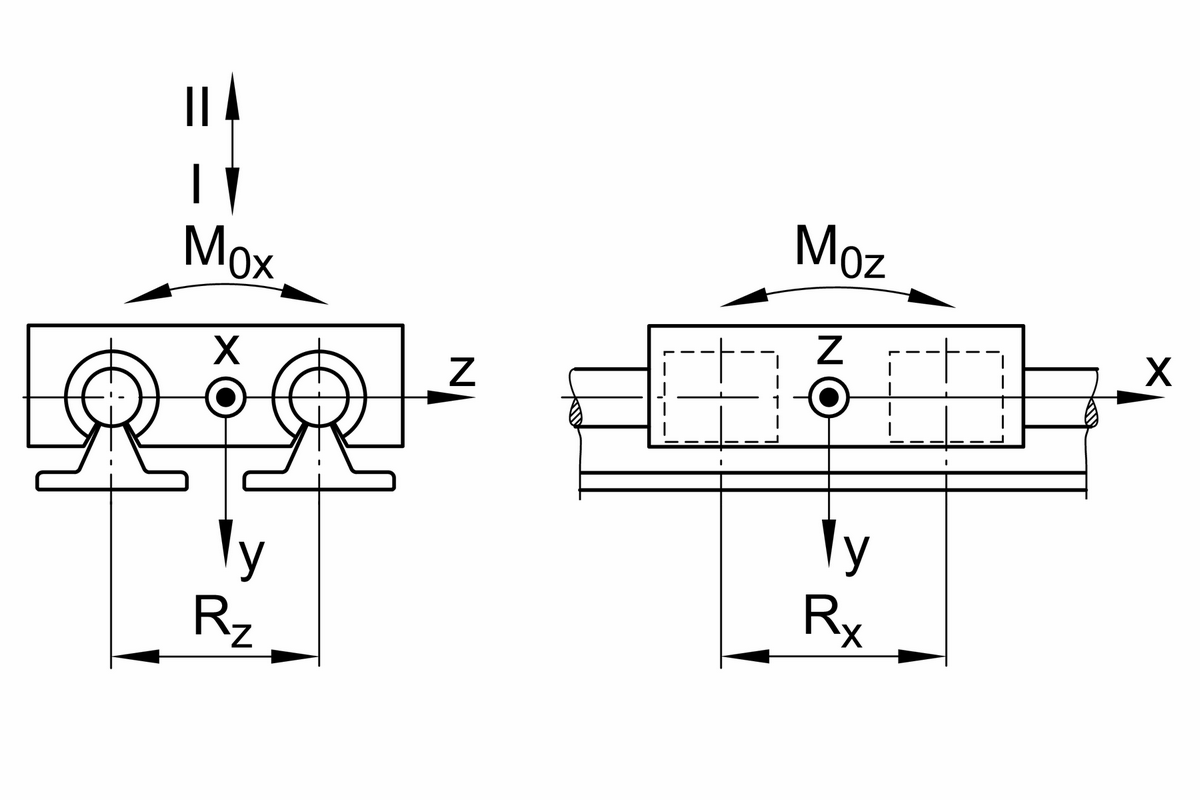

Load direction I: compressive load	18.400 N
Load direction II: tensile load	12.500 N
Load direction III: lateral load	14.910 N
Minimum operating Temperatur	0 °C
Maximum operating Temperatur	80 °C
Max. permissible static moment per Carriage 2	730 Nm

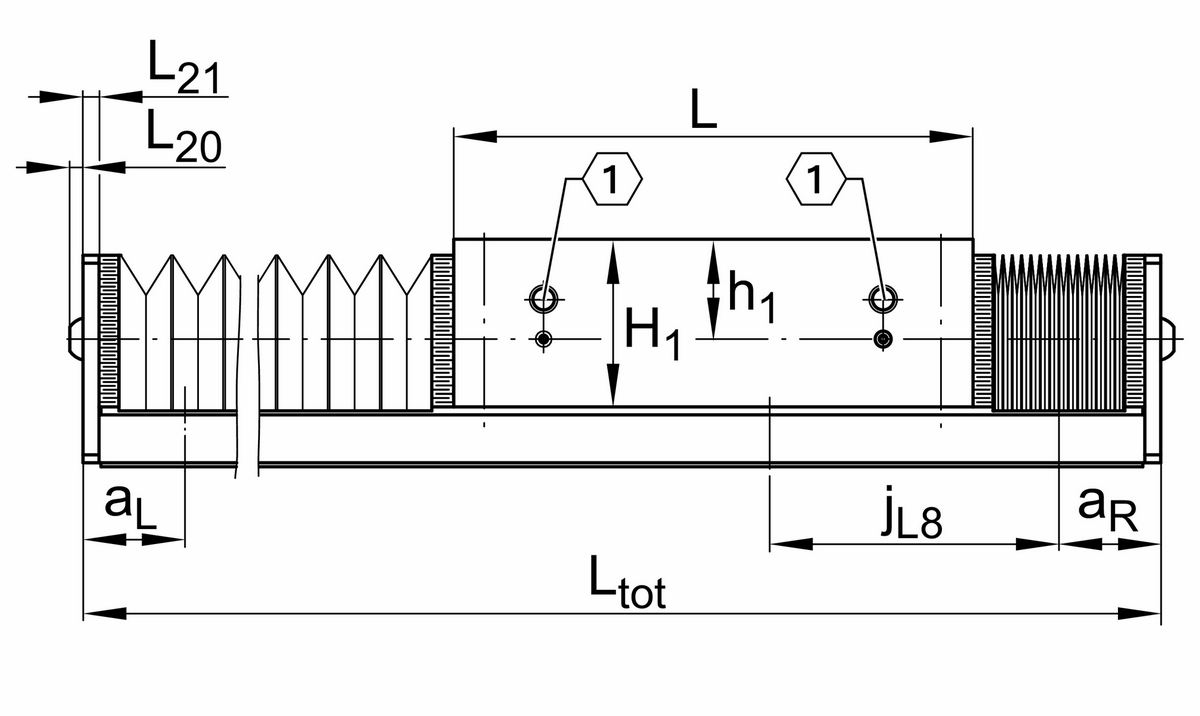

Length of Bellows Fastener	30 mm
Length of carriage	230 mm
Height of carriage	77 mm
Maximum length	6.000 mm
Load direction III: lateral load 1	16.800 N
